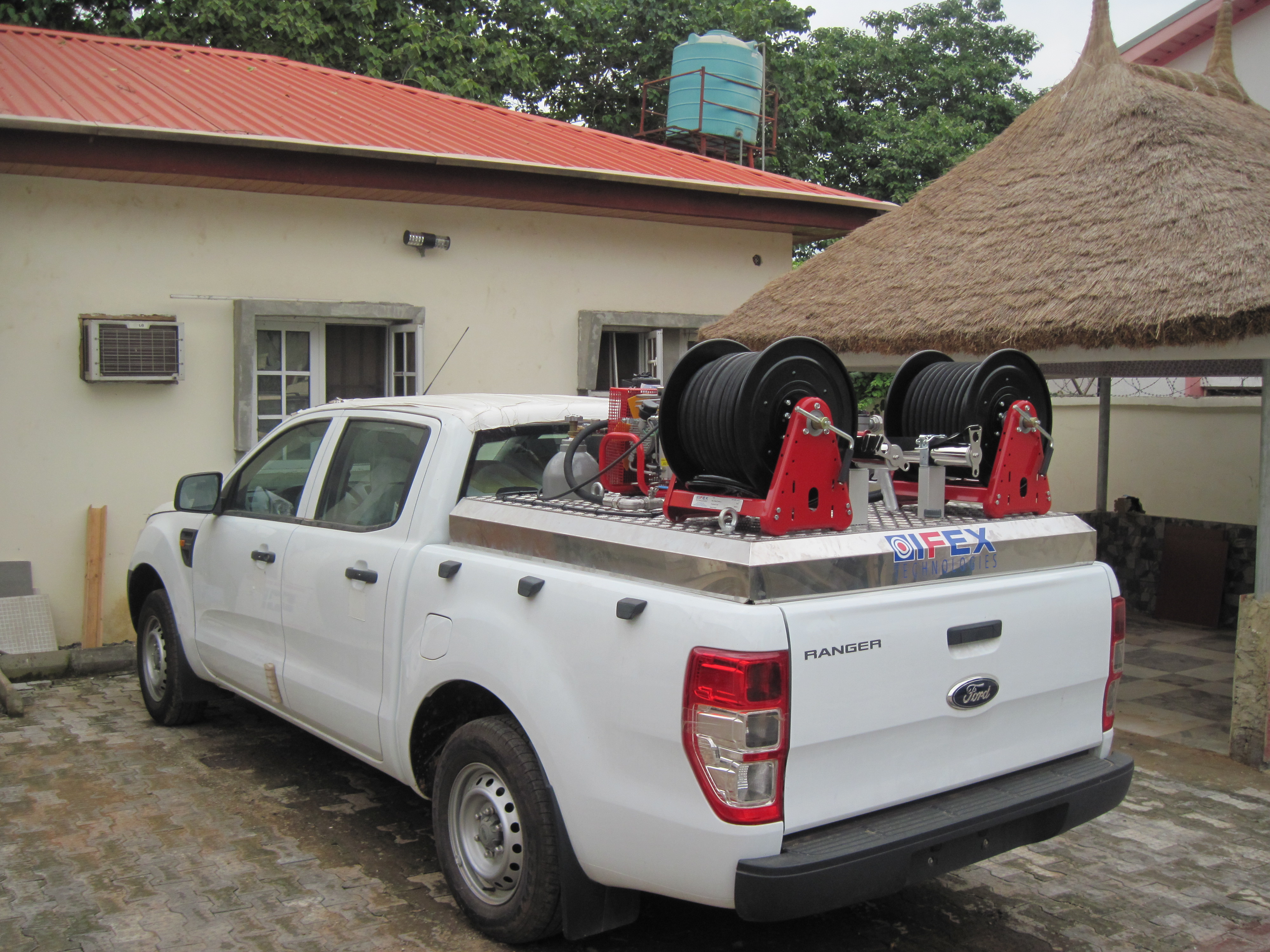

IFEX® Pickup units
IFEX® offers vehicle fire-extinguishing systems flexibly tailored to customer wishes and requirements. Are you looking to retrofit or outfit a vehicle?
Please contact us, we would be happy to advise you!
From the initial design to the delivery of the operational system, including professional instruction, we provide quality tested to the latest standards.
Precision adaptation to the vehicle's specific geometry and professional installation of high-quality components.
Mechanics, hydraulics, electronics, and control systems from a single source:
IFEX® always has the right solution!
Description
Technical specifications for example vehicle (VW Caddy Maxi):
- Water supply: 140 liters in a plastic tank
- Compressed air supply: 2 x 6 liters / 300 bar in steel cylinders
- Foam agent supply: 5 liters in a plastic canister
- Hose reel: 45 meters of coaxial hose, manual operation
- Extinguishing agent pump: 12 V DC, 0.37 kW / 60 l/min at 5 bar pressure
- IFEX® 1-liter impulse gun
- CAFS foam gun
Central function control via a panel featuring a key switch, pump operation switch, and water level indicator. Pump motor protected against short-circuiting and overheating, pump protected against dry running.
